SDA04P-V3 and SDA04PIV-V3



SDA04P-V3 and SDA04PIV-V3 are complete, stand-alone fingerprint recognition systems that capture and store fingerprint data and identify/verify registered users. Designed to function entirely without an external PC, these stand-alone systems can be integrated into access control units, door locks and other products. Additionally, they can communicate with external devices and are interoperable with data input from SecuGen USB fingerprint readers for a wide variety of implementations.



  • FBI Certified version: The SDA04PIV-V3 is FBI Certified (PIV, FIPS 201, Mobile ID FAP 10 Compliant) and meets FBI Image Quality standards.The fingerprint sensor was certified by the FBI as tested and in compliance with the FBI’s Next Generation Identification (NGI) Image Quality Specifications (IQS). The review of the test data was conducted by the FBI / Criminal Justice Information Services Division / Global Operations Section, as part of the Biometric Center of Excellence.
  • Water Resistant version: The models ending with -WR are optional versions that feature a water resistant optic module suited for integration with IP65-rated products.



All models and versions feature next-generation fingerprint technology including SecuGen’s ruggedized, high image quality fingerprint optic module and high speed NIST MINEX Compliant fingerprint matching algorithms for fast 1:1 and 1:N search capabilities.

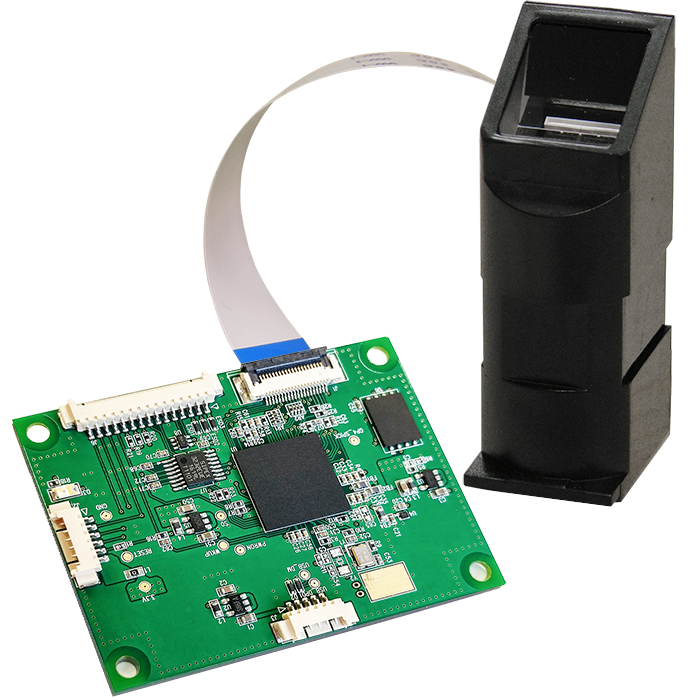

SDA04P-V3

Standalone fingerprint system

SDA04PIV-V3

sda04piv-v3

Technical Specifications

Product

  • Model
  • CPU
  • Template Capacity
  • Host Communication
  • External Interface
  • Sensor (Type)
  • Image Resolution
  • Platen Size
  • Sensing Area
  • Image Grayscale
  • Light Source
  • Supported Fingerprint Templates
  • Other Features
  • Supply Voltage
  • Current Consumption
  • Dimensions
  • Weight
  • Operating Temperature
  • Water Resistance

SDA04P-V3

  • SDA04P-V3
  • 1 GHz MIPS
  • 20,000
  • Serial (RS232, CMOS)
  • GPIO, Wiegand
  • SecuGen SDOPP03V / SDOPP03V-WR (contact)
  • 500 PPI
  • 16.1 mm x 18.2 mm
  • 13.2 mm x 15.2 mm
  • 256 levels (8-bit)
  • LED
  • SecuGen Proprietary, ANSI INCITS 378-2004, and ISO/IEC 19794-2 formats
  • Auto-On™, Smart Capture™
  • 3.3V
  • 190 mA (max.)
  • 21 mm x 32 mm x 62 mm (optic module) 59 mm x 43 mm x 8 mm (processor board)
  • 30 g (optic module) 10 g (processor board)
  • -20°C ~ 65°C
  • Available with SDOPP03-WR sensor

SDA04P-PIV-V3

  • SDA04P-PIV-V3
  • 1 GHz MIPS
  • 20,000
  • Serial (RS232, CMOS)
  • GPIO, Wiegand
  • SecuGen SDOPP04V / SDOPP04V-WR (contact)
  • 508 PPI
  • 16.1 mm x 18.2 mm
  • 12.9 mm x 16.8 mm
  • 256 levels (8-bit)
  • LED
  • SecuGen Proprietary, ANSI INCITS 378-2004, and ISO/IEC 19794-2 formats
  • Auto-On™, Smart Capture™
  • 3.3V
  • 170 mA (max.)
  • 21 mm x 32 mm x 62 mm (optic module) 59 mm x 43 mm x 8 mm (processor board)
  • 30 g (optic module) 10 g (processor board)
  • -20°C ~ 65°C
  • Available with SDOPP04-WR sensor

SDA Developer Kit



The Developer Kit includes all the hardware, software, support and documentation needed to accelerate the design and integration of the SDA fingerprint recognition system into stand-alone or networked devices. The Developer Kit also includes APIs and data conversion modules to help expand the capabilities of your fingerprint biometric system with the following functions:



  • Register, update and delete user profiles
  • Verify or identify user
  • Manage user database
  • Control system settings (brightness, exposure, gain, security levels, quality threshold, etc.)
  • Test all functions
  • Interface with PC and SecuGen USB fingerprint readers



Includes: Choice of SDA (1 unit), DB9 interface board for development, C9 cable, RS232 cable, 3.3V AC-DC power supply, software, documentation and one year of maintenance that includes technical support and free software upgrades.
