SDU03P and SDU04P Sensors



SecuGen’s classic SDU03P and SDU04P fingerprint sensors capture and transmit fingerprint data via USB. At the core of each SDU is SecuGen’s rugged fingerprint optic module that was built on time-tested, patented fingerprint technology that ensures high quality imaging and accuracy. The SDU04P is FBI Certified (PIV, FIPS 201, Mobile ID FAP 10 Compliant) and meets FBI Image Quality standards.The fingerprint sensor was certified by the FBI as tested and in compliance with the FBI’s Next Generation Identification (NGI) Image Quality Specifications (IQS). The review of the test data was conducted by the FBI / Criminal Justice Information Services Division / Global Operations Section, as part of the Biometric Center of Excellence.

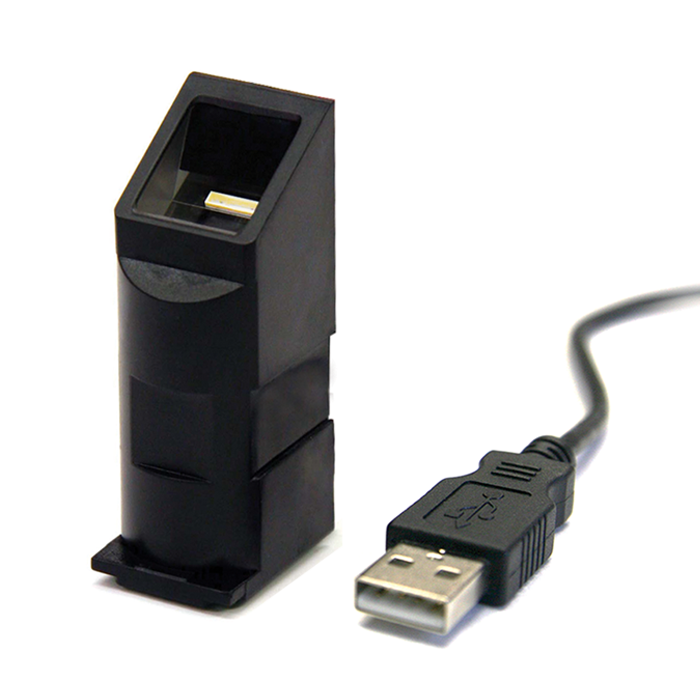

SDU03P

SDU04P

Technical Specifications

Product

  • Sensor Type
  • Image Resolution
  • Image Size
  • Platen Size
  • Sensing Area
  • Image Gray Scale
  • Light Source
  • Smart Capture Speed
  • Biometric Standards
  • Dimensions
  • Weight
  • Cable Length
  • Operating Temperature
  • Operating Humidity
  • Interface
  • Supply Voltage
  • Current Consumption (max)
  • Compliance
  • Dust/Water Resistance
  • Other Features (*when used with SecuGen SDKs)
  • Supported Operating Systems

SDU03P

  • Contact
  • 500 DPI
  • 260 x 300 pixels
  • 14.6 mm x 17.9 mm
  • 13.2 mm x 15.2 mm
  • 256 levels (8-bit)
  • LED
  • 0.2 ~ 0.5 seconds
  • INCITS 378, ISO/IEC 19794-2, ISO/IEC 19794-4
  • 21 mm x 32 mm x 60 mm
  • 32 g
  • 1500 mm
  • -20° ~ 65°C
  • 90% or less RH, noncondensing
  • USB 1.1 Full-Speed, USB 2.0 Hi-Speed
  • 5V (via USB)
  • 140 mA
  • FCC, CE, KC, RoHS, WHQL
  • No
  • *Auto-On™, *Smart Capture™, *Device Recognition™, 360 Degree Fingerprint Rotation
  • Windows 11 / 10 / 8.1 / 7, Windows Server 2016 / 2012 / 2008 R2, Android 3.1 and above, Linux

SDU04P

  • Contact
  • 508 DPI
  • 258 x 336 pixels
  • 14.6 mm x 17.9 mm
  • 12.9 mm x 16.8 mm
  • 256 levels (8-bit)
  • LED
  • 0.2 ~ 0.8 seconds
  • INCITS 378, ISO/IEC 19794-2, ISO/IEC 19794-4, FIPS 201, FBI (PIV, Mobile ID FAP 10), NIST MINEX, WSQ
  • 21 mm x 32 mm x 60 mm
  • 32 g
  • 1500 mm
  • -20° ~ 65°C
  • 90% or less RH, noncondensing
  • USB 1.1 Full-Speed, USB 2.0 Hi-Speed
  • 5V (via USB)
  • 150 mA
  • FCC, CE, KC, RoHS, WHQL
  • No
  • *Auto-On™, *Smart Capture™, *Device Recognition™, 360 Degree Fingerprint Rotation
  • Windows 11 / 10 / 8.1 / 7, Windows Server 2016 / 2012 / 2008 R2, Android 3.1 and above, Linux
