U-AIR Touchless USB Fingerprint Sensor



The U-AIR is a contactless USB fingerprint sensor module that captures highly accurate, high-quality fingerprint images without requiring users to contact or touch the device. The U-AIR features compact, touchless optical technology that can scan a single fingerprint from a user’s finger positioned in the air above the device.

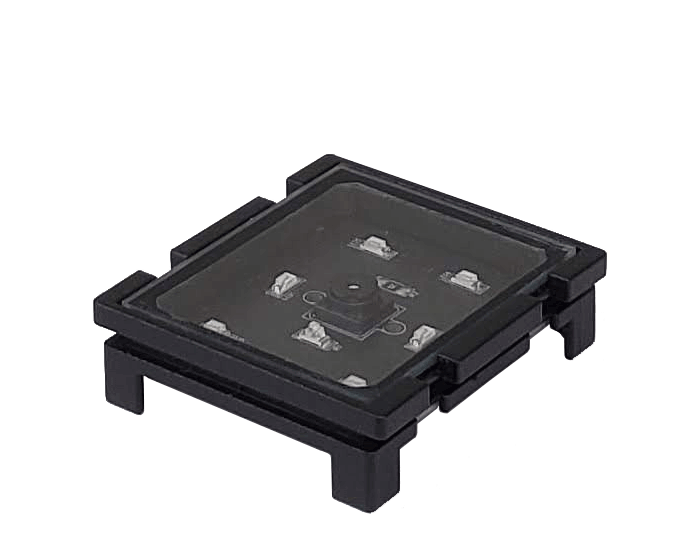

  • The U-AIR sensor module has a compact and slim design with CMOS imager and LED lights covered with optical glass
  • The finger height guide is designed to visually direct the user to position their finger at an optimal height above the sensor module

Additional Features

  • Touchless, contactless single-finger fingerprint scanning
  • Ideal for high traffic, multi-user environments where users prefer to not touch surfaces
  • Fast recognition of challenging and difficult fingerprints (dry, wet, scarred)
  • Fast and accurate verification
  • Readily accessible for any finger
  • Auto-On™ – automatic finger detection technology (when used with apps built with SecuGen SDKs)
  • Smart Capture™ – self-adjusting scanning technology (when used with apps built with SecuGen SDKs)
  • Device Recognition™ – device authentication technology (when used with apps built with SecuGen SDKs)
  • Fingerprint template encryption (when using SecuGen Proprietary template format)

Technical Specifications

Product

  • Sensor Type
  • Image Resolution
  • Image Size
  • Sensing Area
  • Image Gray Scale
  • Light Source
  • Smart Capture Speed
  • Biometric Standards/Specs
  • Dimensions
  • Weight
  • Cable Length
  • Operating Temperature
  • Operating Humidity
  • Interface
  • Supply Voltage
  • Current Consumption (max)
  • Other Features (*when used with SecuGen SDKs)
  • Supported Operating Systems

U-AIR

  • Contactless
  • 500 DPI
  • 500 x 700 pixels
  • 24.5 mm x 35.6 mm
  • 256 levels (8-bit)
  • Green LED
  • 0.1 ~ 0.5 seconds
  • INCITS 378, ISO/IEC 19794-2, ISO/IEC 19794-4, NIST MINEX
  • 42.8 mm x 39.8 mm x 11.8 mm (without finger height guide)
    42.8 mm x 39.8 mm x 56.4 mm (with finger height guide)
  • 12 g (without finger height guide)
    22 g (with finger height guide)
  • 1500 mm
  • -20° ~ 65°C
  • 90% or less RH, noncondensing
  • USB 2.0 Hi-Speed
  • 5V (via USB)
  • 220 mA
  • *Auto-On™, *Smart Capture™, *Device Recognition™
  • Windows 11 / 10 / 8.1 / 7, Windows Server 2022 / 2019 / 2016 / 2012, Android 8.1 and above, Linux
