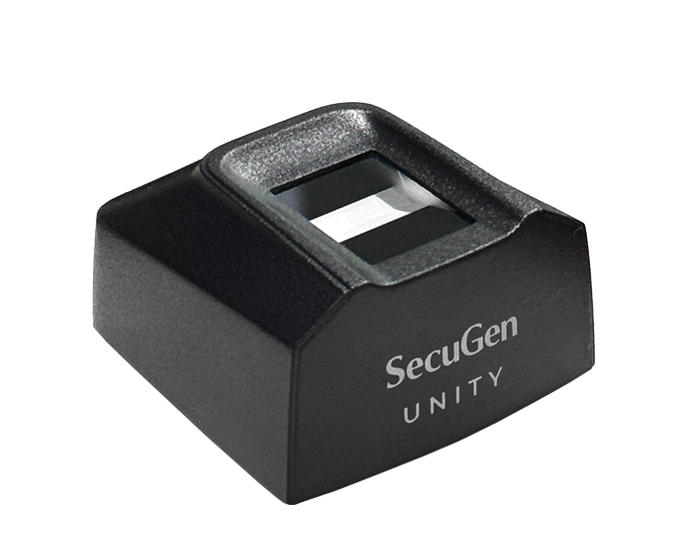

Unity 20 USB-S



The Unity 20 USB-S is an ultra-compact, smart fingerprint recognition system built for simplicity, security, and seamless integration. Whether you’re deploying biometric authentication in enterprise systems, embedded environments, self-service kiosks or custom applications, Unity 20 USB-S delivers powerful performance in a sleek, affordable package.



Smart, All-in-One Biometric System

More than just a reader, Unity 20 USB-S is a fully programmable fingerprint recognition system. It captures, extracts, matches, and securely stores fingerprint templates—all within the device itself.



Key Benefits
  • End-to-End Fingerprint Processing: Captures, extracts, and matches fingerprints directly on the device—no need for external software or cloud processing.
  • Secure Template Storage: Keeps biometric data safely stored within the device, reducing exposure to network vulnerabilities and enhancing privacy compliance.
  • Fully Programmable Platform: Offers developers flexibility to customize fingerprint workflows and integrate seamlessly into diverse applications.
  • Fast Authentication and Low Latency: On-device, real-time matching enables rapid identity verification without relying on host system resources.
  • Reduced Integration Complexity: Eliminates the need for separate biometric modules or middleware, streamlining deployment.
  • Enhanced Reliability: Operates independently of host system performance, making it ideal for embedded systems and mission-critical environments.



Works Anywhere, Right Out of the Box

Unity 20 USB-S connects effortlessly to Windows®, Android®, Linux®, and macOS® systems using a single USB cable. Thanks to its Serial-over-USB architecture, it enumerates as a standard CDC/ACM virtual COM port—no proprietary drivers or OS-specific frameworks required.

  • Plug-and-play deployment
  • Compatible with VDI/thin clients and remote desktop sessions
  • Ideal for tightly managed or resource-constrained IT environments



Developer-Friendly by Design

Unity 20 USB-S is built with developers and system integrators in mind. An available free developer kit includes robust tools and documentation to accelerate application development and reduce integration friction.

  • Built-in Fingerprint Management System (FMS) API that supports C/C++, .NET, Python, Java, and any language that can open a serial port
  • Well-documented serial command set
  • Sample code for rapid prototyping
Request Free DK Download



Features



  • FBI Certified (PIV, FIPS 201, Mobile ID FAP 20 Compliant) meets FBI Image Quality standardsThis product was certified by the FBI as tested and in compliance with the FBI’s Next Generation Identification (NGI) Image Quality Specifications (IQS). The review of the test data was conducted by the FBI / Criminal Justice Information Services Division / Global Operations Section, as part of the Biometric Center of Excellence.
  • Fingerprint capture, processing, extraction, and matching using Fingerprint Management System (FMS) software that works right out of the box
  • Large fingerprint template storage capacity and support for SG400, ISO/IEC 19794-2, and single view ANSI INCITS 378-2004 templates
  • NIST MINEX Certified and FIPS 201 Compliant embedded fingerprint algorithms for template generation and matching
  • USB cable with Serial-over-USB connectivity
  • Rugged, high-performance, maintenance-free optical sensor resistant to scratches, impact, vibration and electrostatic shock
  • Fast recognition and high quality imaging of difficult fingerprints (dry, wet, scarred) in challenging environments
  • Fast and accurate verification
  • Readily accessible for any finger
  • Auto-On™ – automatic finger detection technology (when used with apps built with SecuGen SDKs)
  • Smart Capture™ – self-adjusting scanning technology (when used with apps built with SecuGen SDKs)
  • Device Recognition™ – device authentication technology (when used with apps built with SecuGen SDKs)
  • Fingerprint template encryption (when using SecuGen Proprietary template format)
  • Latent print rejection (does not accept prior fingerprints left behind on sensor)
  • Ultra-compact, lightweight and portable
  • Integrated finger guide

Technical Specifications

Product

  • Model
  • Fingerprint Module (Type)
  • Biometric Standards/Specs
  • CPU
  • Template Capacity
  • Supported Fingerprint Templates
  • NIST/MINEX Compliance
  • Image Resolution
  • Platen Size
  • Sensing Area
  • Image Grayscale
  • Light Source
  • Other Features
  • External Connection
  • Supply Voltage
  • Current Consumption
  • Dimensions
  • Weight
  • Cable Length
  • Operating Temperature
  • Operating Humidity
  • Compliance
  • Water/Dust Resistance
  • Warranty
  • Supported Operating Systems

Unity 20 USB-S

  • HU20-ASF-US
  • U20-ASF (contact)
  • INCITS 378, ISO/IEC 19794-2, ISO/IEC 19794-4, FIPS 201, FBI (PIV, Mobile ID FAP 20), NIST MINEX, WSQ
  • 1 GHz MIPS
  • 200 templates (100 users)
  • SecuGen Proprietary, ANSI INCITS 378-2004, and ISO/IEC 19794-2 formats
  • Template Generator and Template Matcher
  • 500 PPI
  • 18.2 mm x 23.1 mm
  • 15.24 mm x 20.32 mm
  • 256 levels (8-bit)
  • LED
  • Auto-On™, Smart Capture™, Device Recognition™, 360 Degree Fingerprint Rotation
  • USB
  • 5V
  • 180 mA max.
  • 53.9 mm x 58.5 mm x 31.9 mm
  • 97 g
  • 1500 mm
  • -20° ~ 65°C
  • 90% or less RH, noncondensing
  • FCC, CE, KC, RoHS3, CB, WEEE, USB 2.0 compatible
  • IP54 rated
  • One year limited
  • Windows, Android, Linux, macOS

Benefits of Using SecuGen Fingerprint Readers



SecuGen’s all-in-one fingerprint systems are powerful yet easy to use and can securely perform all biometric functions within the device without reliance on an external host for processing. Backed by the industry’s best warranty, years of field use and proven reliability under extreme conditions, SecuGen fingerprint readers have been highly sought after for their consistent performance and affordability for a wide variety of applications in diverse environments throughout the world.



When used for biometric authentication as part of an overall security program, SecuGen fingerprint readers can help reduce the hassles of password overload, decrease the risks of security breaches, improve accountability and add true non-repudiation, all while making it more convenient and intuitive for any user.



Look to SecuGen for advanced, fingerprint biometric technologies that let your fingerprints act like digital passwords that cannot be lost, forgotten or stolen.
